4004A2 LCD Module
The 4004A2 LCD module is a reliable and versatile display solution suitable for a wide range of industrial and commercial applications. This module provides clear and concise information display, enhancing user interaction and system monitoring.
Key Benefits:
- Clear and readable display for easy information access.
- Durable construction for long-lasting performance.
- Easy integration into existing systems.
- Customizable options available to meet specific needs.
- Low power consumption for energy efficiency.
Target Industries and Applications: Industrial control systems, instrumentation, point-of-sale terminals, and consumer electronics.
Product Attributes
FOB Price $10.66
FOB Unit Piece
Product MOQ N/A
Packaging & Delivery Tax excluded, add at checkout if applicable.
Technical Specifications
| Attribute |
Value |
| Hign-concerned Chemical |
None |
| Display Mode |
4004 |
| Resolution |
40*04 |
| Is Customized |
Yes |
| Model Number |
4004A2 |
| Type |
COB |
| Origin |
Mainland China |

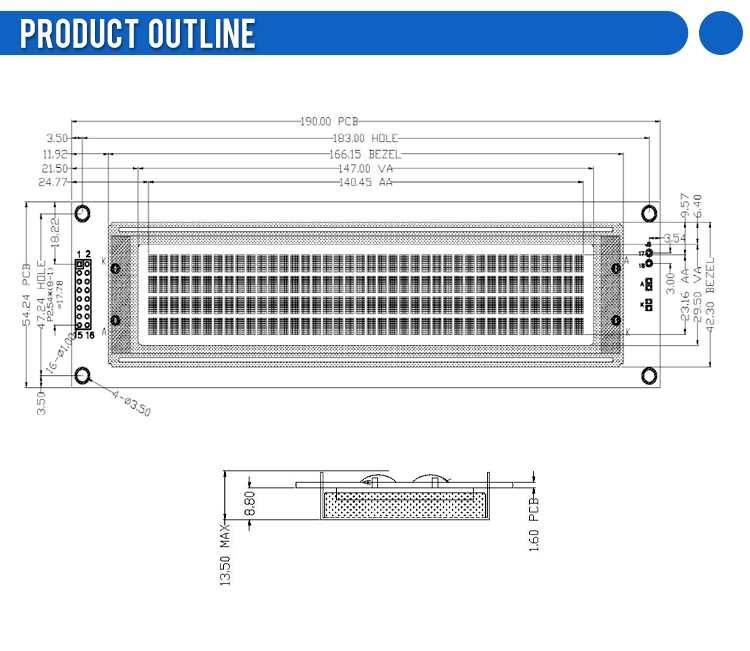

| Outline Dimension |
190×54.24×13.5mm |
| View Size |
147×29.5mm |
| Controller |
ST7066U |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
