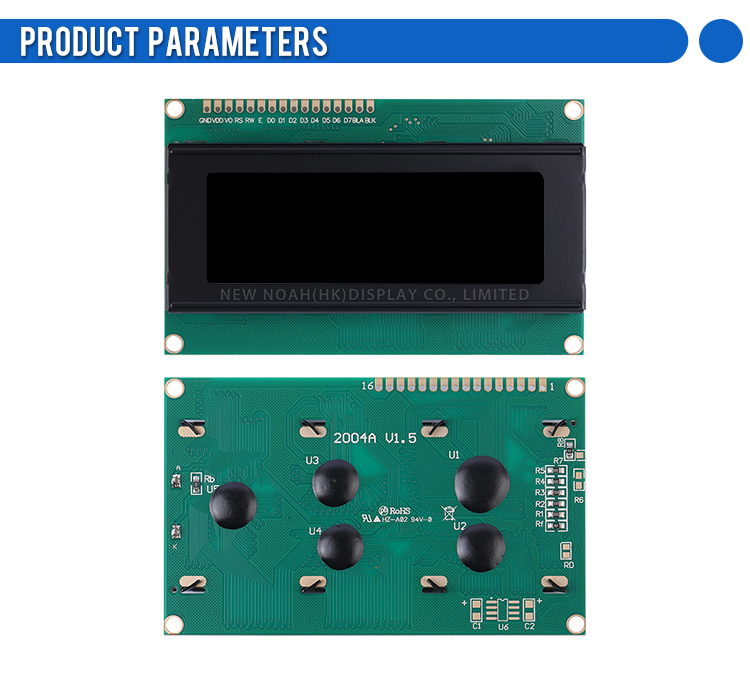

2004A LCD Module
The 2004A LCD module is a reliable and versatile display solution suitable for a wide range of industrial and commercial applications. Its clear display and robust design ensure optimal performance in demanding environments.
This module offers a user-friendly interface and easy integration, making it an ideal choice for both experienced engineers and newcomers to display technology.
Key Benefits:
- Clear and readable 20x4 character display
- Easy to interface with common microcontrollers
- Robust and reliable performance
- Compact design for space-constrained applications
Target Industries & Applications:
Suitable for use in industrial control systems, instrumentation, consumer electronics, and more.
Product Attributes
FOB Unit: piece
FOB Price: $3.29
Product MOQ: Not Specified
Packaging & Delivery: Not Specified
Technical Specifications
| Attribute |
Value |
| Hign-concerned Chemical |
None |
| Display Mode |
2004 |
| Resolution |
20*04 |
| Is Customized |
Yes |
| Model Number |
2004A |
| Type |
COB |
| Origin |
Mainland China |
| Outline Dimension |
98x60x13.1mm |
| View Size |
77×25.2mm |
| Controller |
ST7066U |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
