Persian 1602A
The Persian 1602A is a versatile and reliable display module suitable for a wide range of industrial and commercial applications. Its clear display and robust design make it an excellent choice for integrating into your products.
Key benefits include:
- Clear and readable 16x02 display
- Durable construction for industrial environments
- Customizable options to meet specific needs
- Easy integration with standard controllers
- Cost-effective solution for display applications
Target industries and applications: Industrial control, instrumentation, consumer electronics, and embedded systems.
Product Attributes
FOB Unit: Piece
Product MOQ: Unknown
FOB Price: $2.22
Packaging & Delivery: Unknown
Technical Specifications
| Attribute |
Value |
| Hign-concerned Chemical |
None |
| Display Mode |
1602 |
| Resolution |
16*02 |
| Is Customized |
Yes |
| Model Number |
Persian 1602A |
| Type |
COB |
| Origin |
Mainland China |

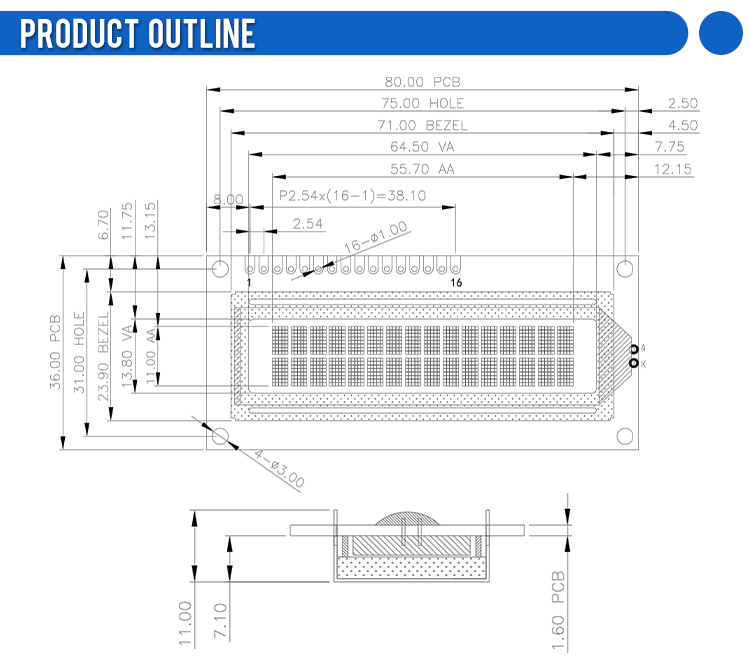

| Outline Dimension |
80x36x11mm |
| View Size |
64.5×14.5mm |
| Controller |
ST7066 |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
