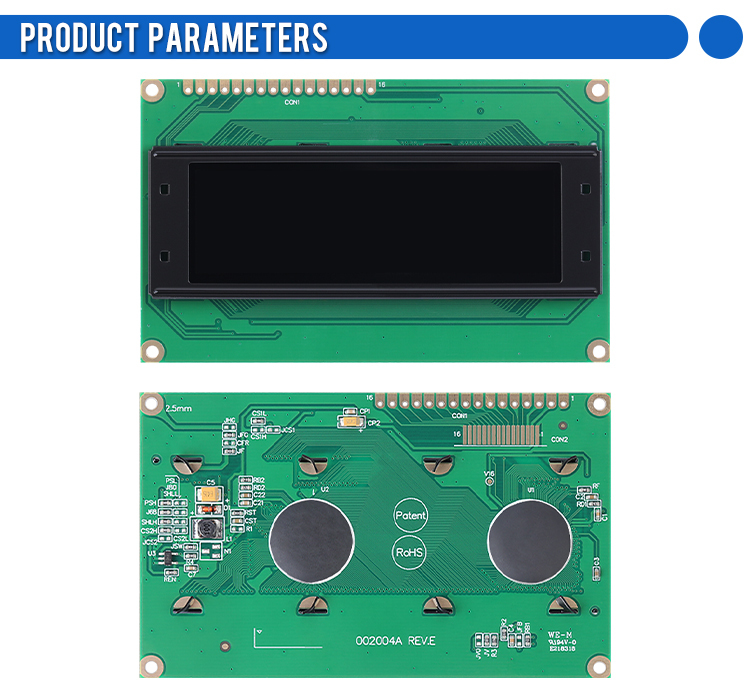

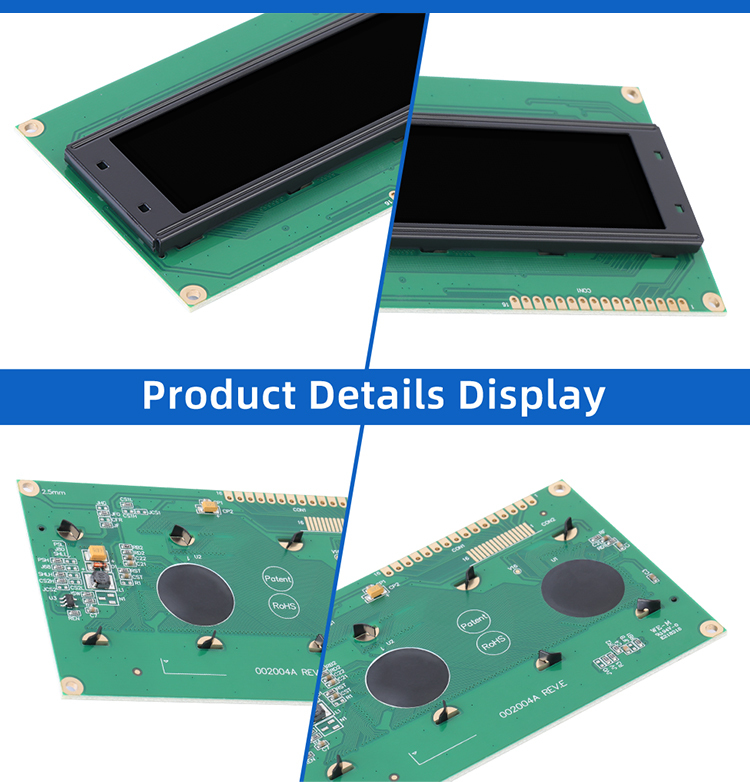

OLED002004A Character LCD Module
The OLED002004A Character LCD Module (XNYOLED002004A) is a reliable and versatile character display solution suitable for a wide range of applications. This module offers clear and concise text information display, making it ideal for integration into various electronic devices and embedded systems.
Key Benefits:
- Clear and concise character display
- Compact and easy to integrate (98×60×10mm outline dimension)
- Durable and reliable performance (backed by a 3-year warranty)
- Cost-effective character display solution
- Customizable to meet specific interface or application requirements
- Stable signal transmission with WS0010-TX controller and parallel port interface
Target Industries and Applications:
This 20×4 character OLED LCD module features self-luminous OLED display technology, ensuring ultra-high contrast ratio and crisp text readability under all ambient light conditions. Equipped with a parallel port interface and integrated WS0010-TX driver IC, it supports stable signal transmission and consistent performance. With its robust structure and wide operating temperature adaptability, it delivers reliable long-term working performance in diverse environments, suitable for:
- Industrial control panels
- Smart instruments and meters
- Consumer electronics
- Embedded system displays
- Portable electronic devices
- Smart home devices
| Attribute |
Value |
FOB Price |
FOB Unit |
| Black Color |
Black-White |
$168 |
Piece |
| Black Color |
Black-Blue |
$171 |
Piece |
| Black Color |
Black-Yellow |
$169 |
Piece |
| Black Color |
Black-Green |
$170 |
Piece |
| Black Color |
Black-Red |
$172 |
Piece |
Technical Specifications
| Attribute |
Value |
| Display Mode |
OLED002004A |
| Hign-concerned Chemical |
None |
| Resolution |
20*04
|
| is_customized |
Yes |
| Model Number |
OLED002004A |
| Type |
OLED |
| Origin |
Mainland China |

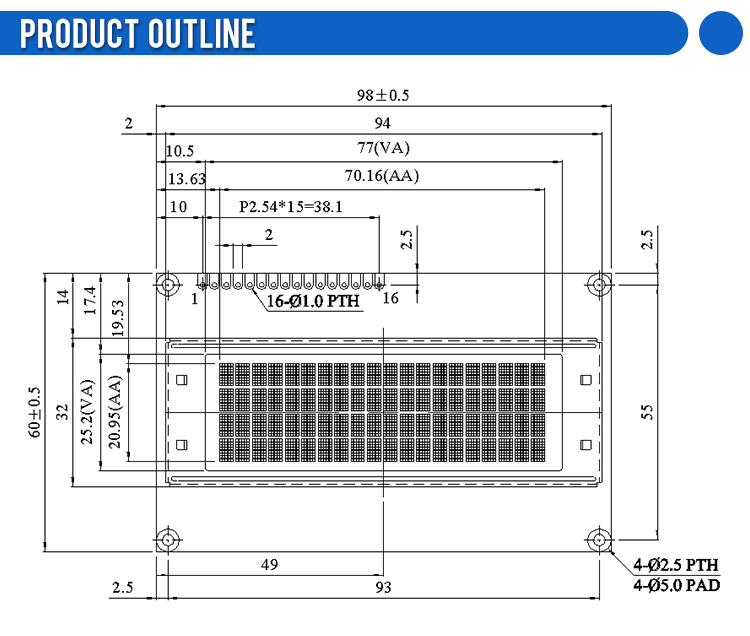

| Outline Dimension |
98×60×10mm |
| View Size |
77×25.2mm |
| Controller |
WS0010-TX |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
